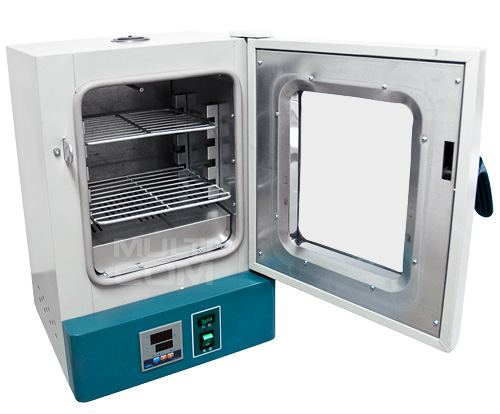

TBK228 TBK-228 Electric heating and Constant Temperature Drying Oven for Phone/Computer Repair

TBK 228 LCD Mobile Dryer is designed for professional electronics and electronics repair and maintenance companies. Their main task is to preheat the bodies to allow easy separation as well as for heating electronic components such as SMD, BGA etc. before soldering. The heating allows the components to be dried so that they do not undergo any damage such as delamination, internal cracks, stagnation of the tin from the core, etc. The oven also reduces the temperature shock that results from soldering.


Specifications:
- producer: TBK
- model: 228
- external dimensions: 56x734x37 cm (height x width x depth)
- internal dimensions: 25x23x34 mm (height x width x depth)
- number of shelves: 2
- Temperature control: 50-300 ° C
- accuracy: ± 1%
- supply voltage: 230V AC
- air circulation function
- heating time to 70 ° C - about 15 minutes
- energy consumption to maintain the temperature 125 ° C - about 0.15 kW
