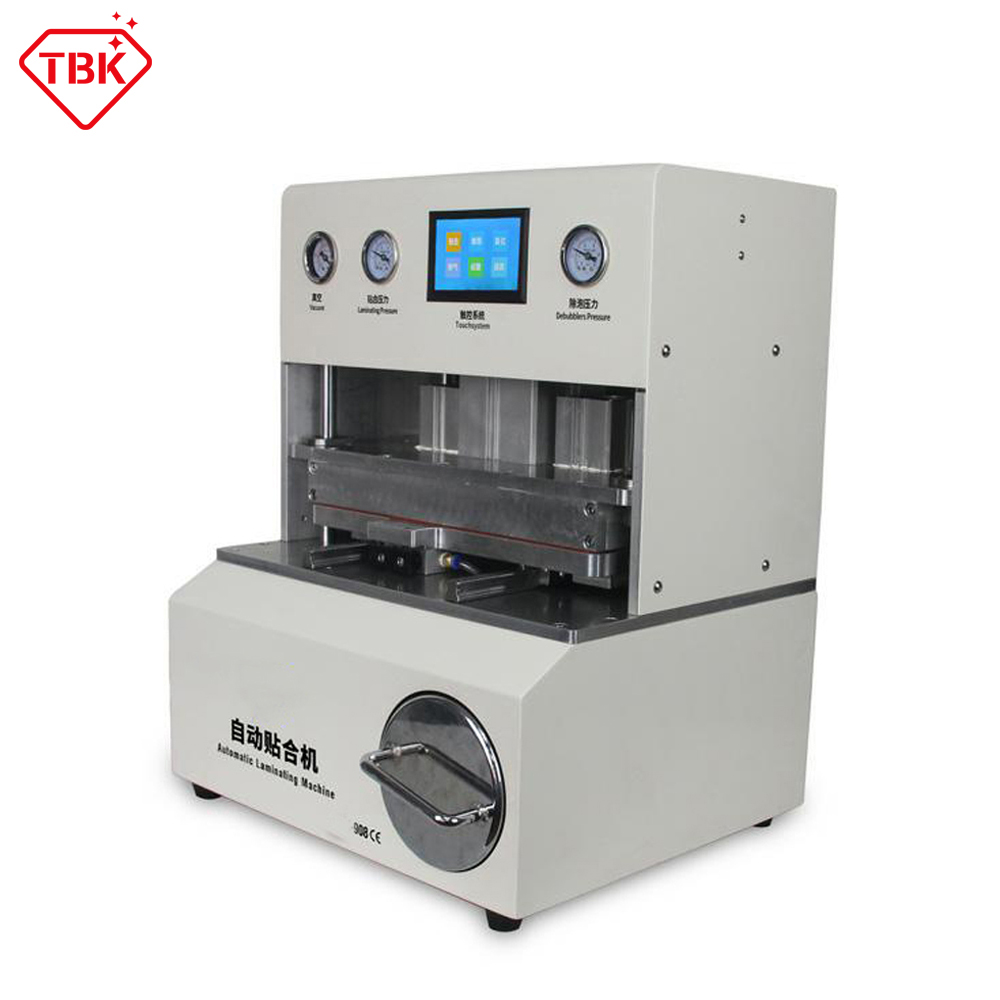

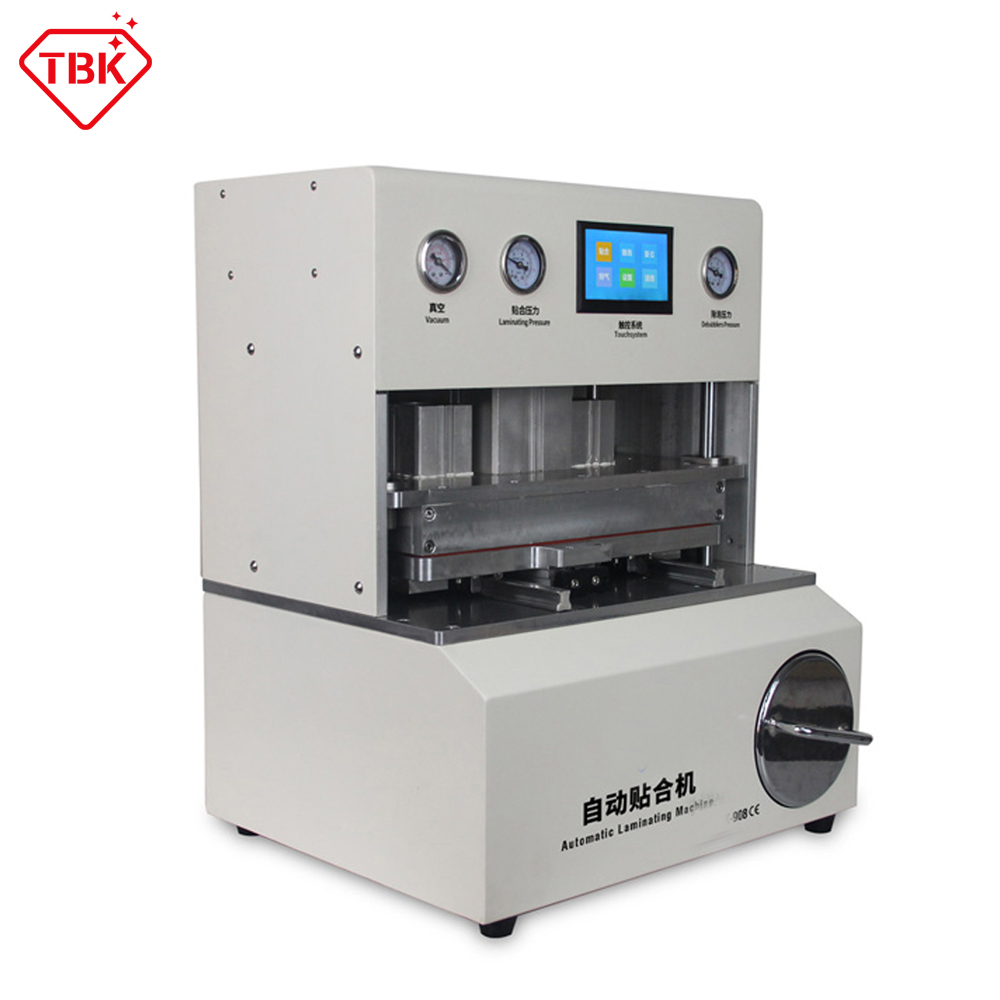

TBK-908 LCD Display Laminating and Bubble-Removing Machine

TBK-908 LCD Display Laminating and Bubble Removing Machine

Product Features:
*    Plug in power line and turn on power switch
*    Set-up the Vacuum time to 15s,Laminating time 30s
*    Removing bubble time 3-10mins
*    Laminating Debubble temperature 40 degree
*    Professional Curved Touch Scree Repair and Removal Bubble Machine
*    Realized 2 kinds of touch screen laminating and removal bubble

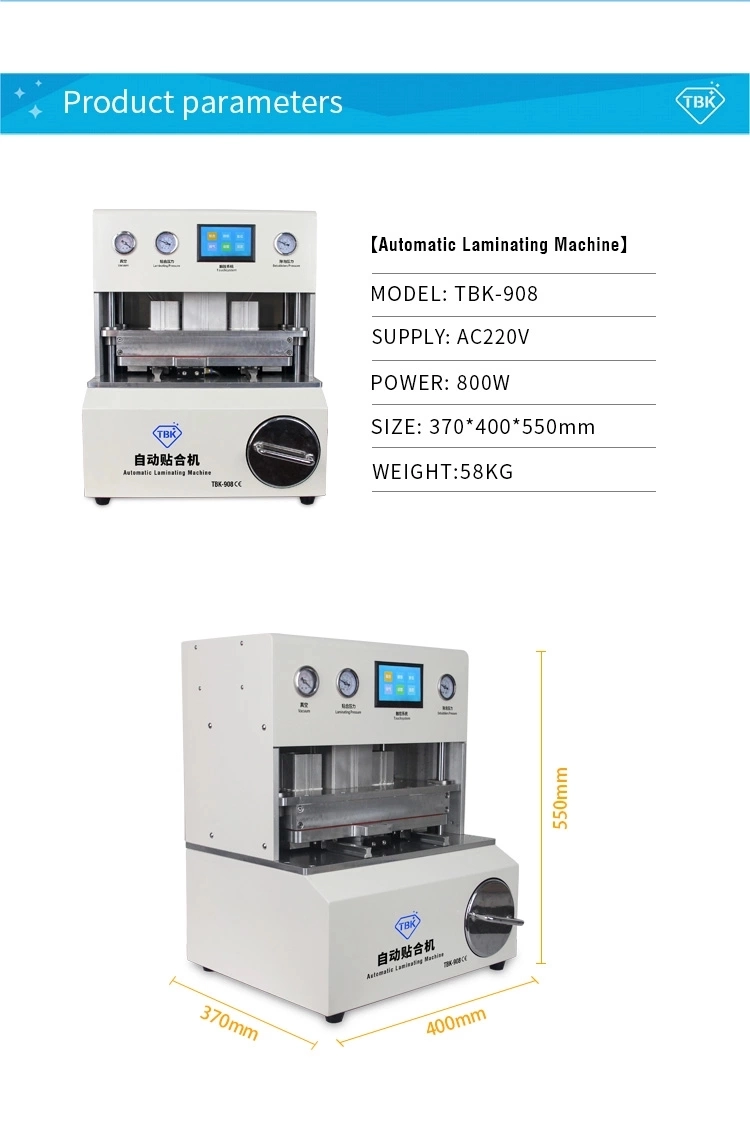

Product details:
*    Model: TBK-908
*    AC inlet: 110V/60Hz or 220V/50Hz
*    Power handling: 800W
*    Laminating size: 230*320*15 mm
*    Bubble-removing size: 110*290*15 mm
*    Product size: 44*48*55 cm
*    Product net weight: 57.0 kgs
*    Package gross weight: 70.5 kgs
*    Packing size: 54*55*71 cm

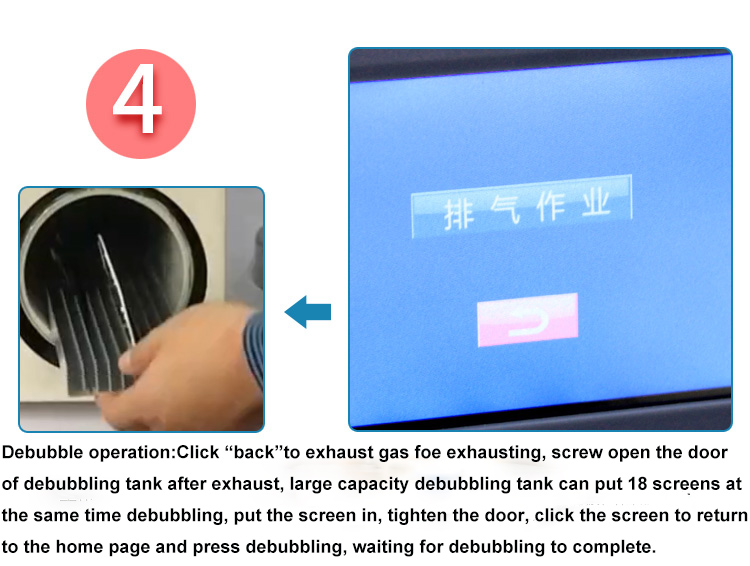

How to use (Operation steps):
