TBK 808 High Quality All In One Automatic Vacuum LCD Laminating And Bubble Removing Machine For Universal Mobile

TBK 808 High Quality All In One Automatic Vacuum LCD Laminating And Bubble Removing Machine For Universal Mobile

Operating Steps:
1. first set vacuum time 15s, laminating 35s, remove bubble 3min, temperature 40C
2. press"automatic" start pre-heating
3. open laminating door
4. tear protect film and take inside the mould
5. take glass with frame on LCD
6. click LCD centre when in right position
7. put laminating mould on LCD
8. take lcd corner something out, prevent broken LCD
9. take glass inside in laminating zone
10. then lid on, press start
11. after wait setting remove bubble time, automatic exhaust
12. take screen out, done.

Product details:

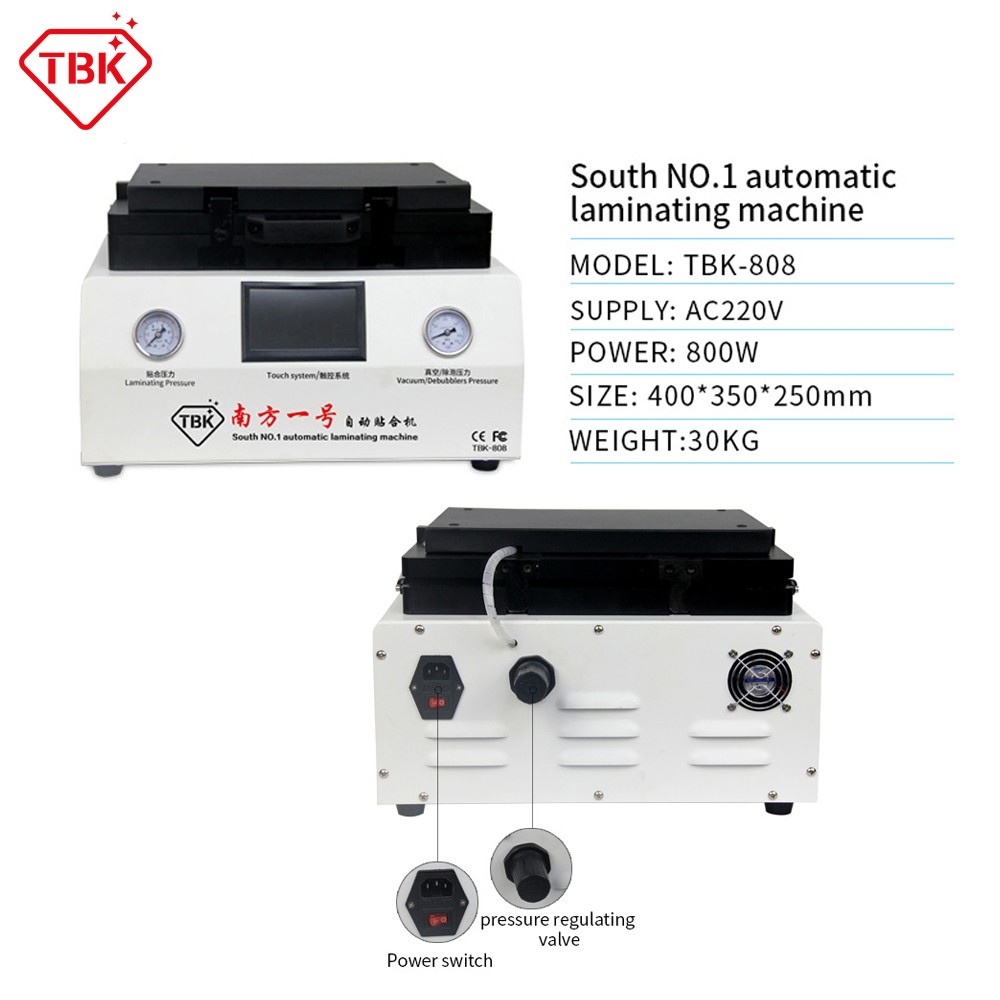

*    Model: TBK-808
*    AC inlet: 110V/60Hz or 220V/50Hz
*    Power handling: 800W
*    Laminating size: 280*190*15 mm
*    Bubble-removing size: 280*190*15 mm

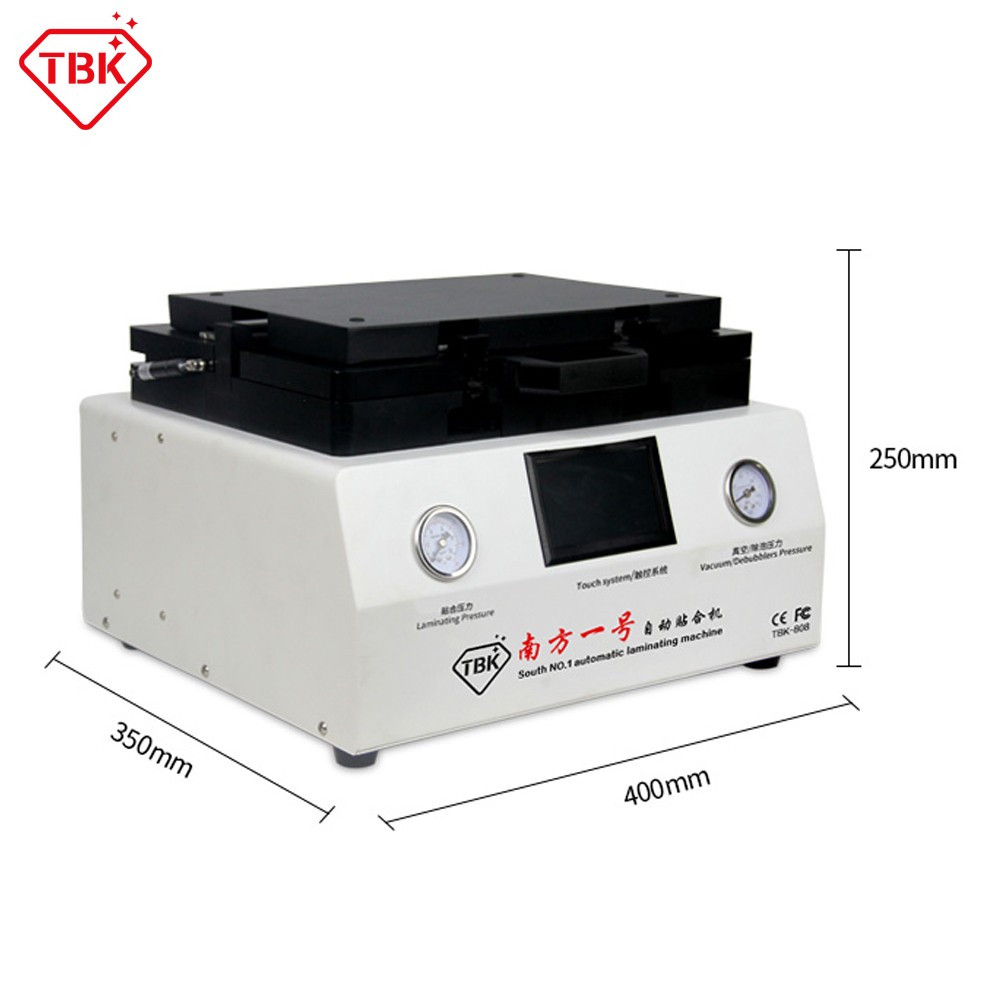

*    Product size: 41*40*28 cm
*    Product net weight: 30.0 kgs
*    Package gross weight: 36.0 kgs
*    Packing size: 49*46.5*43 cm
