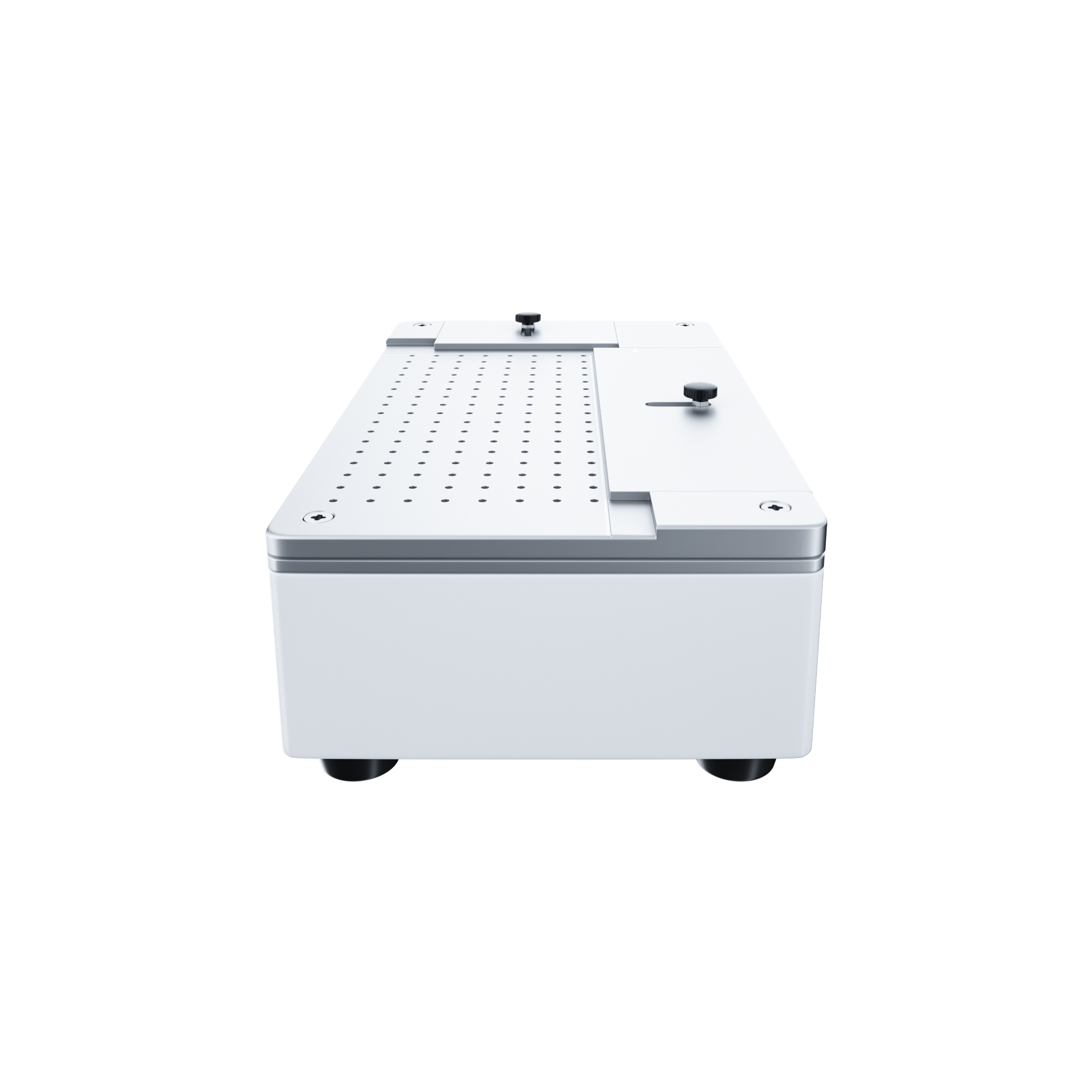

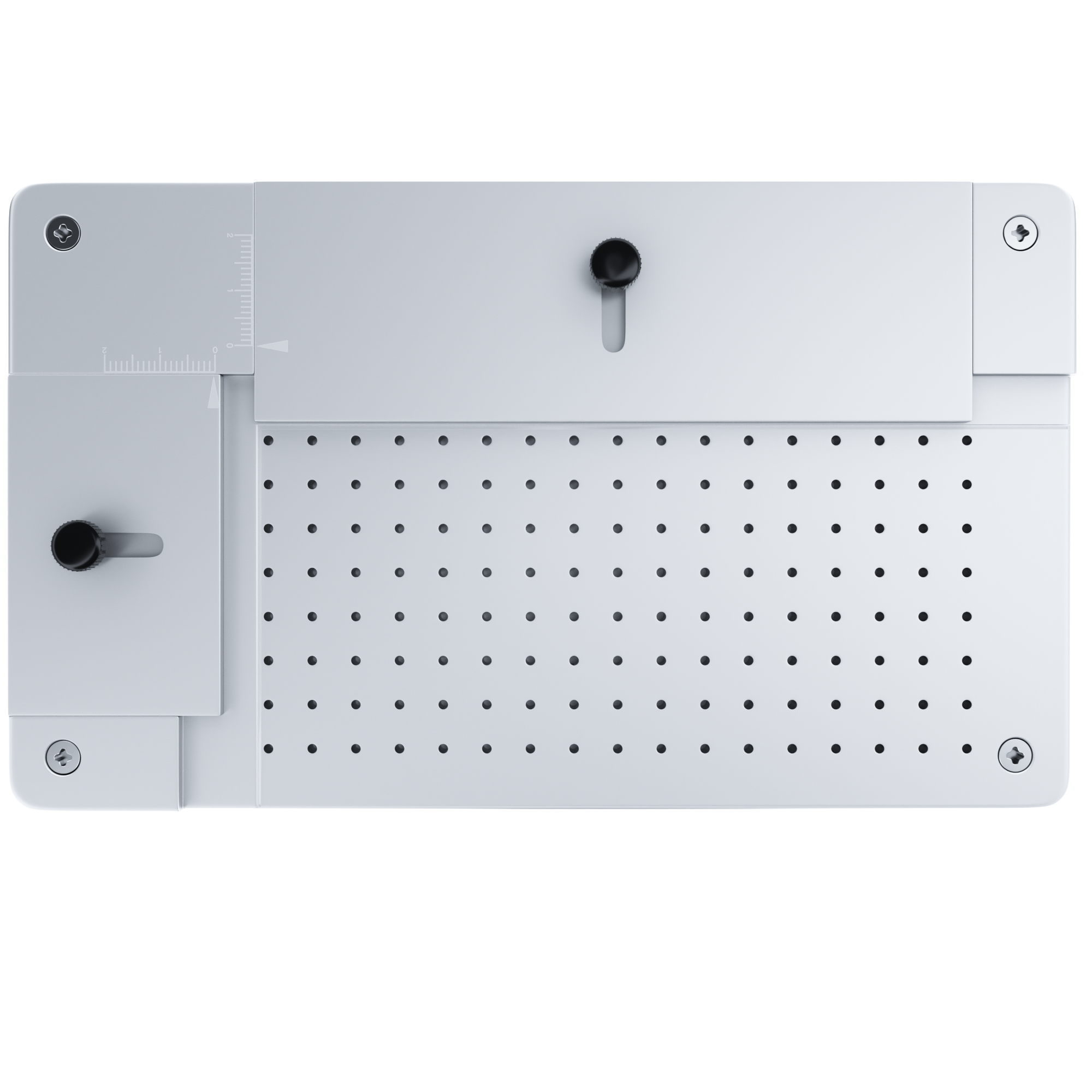

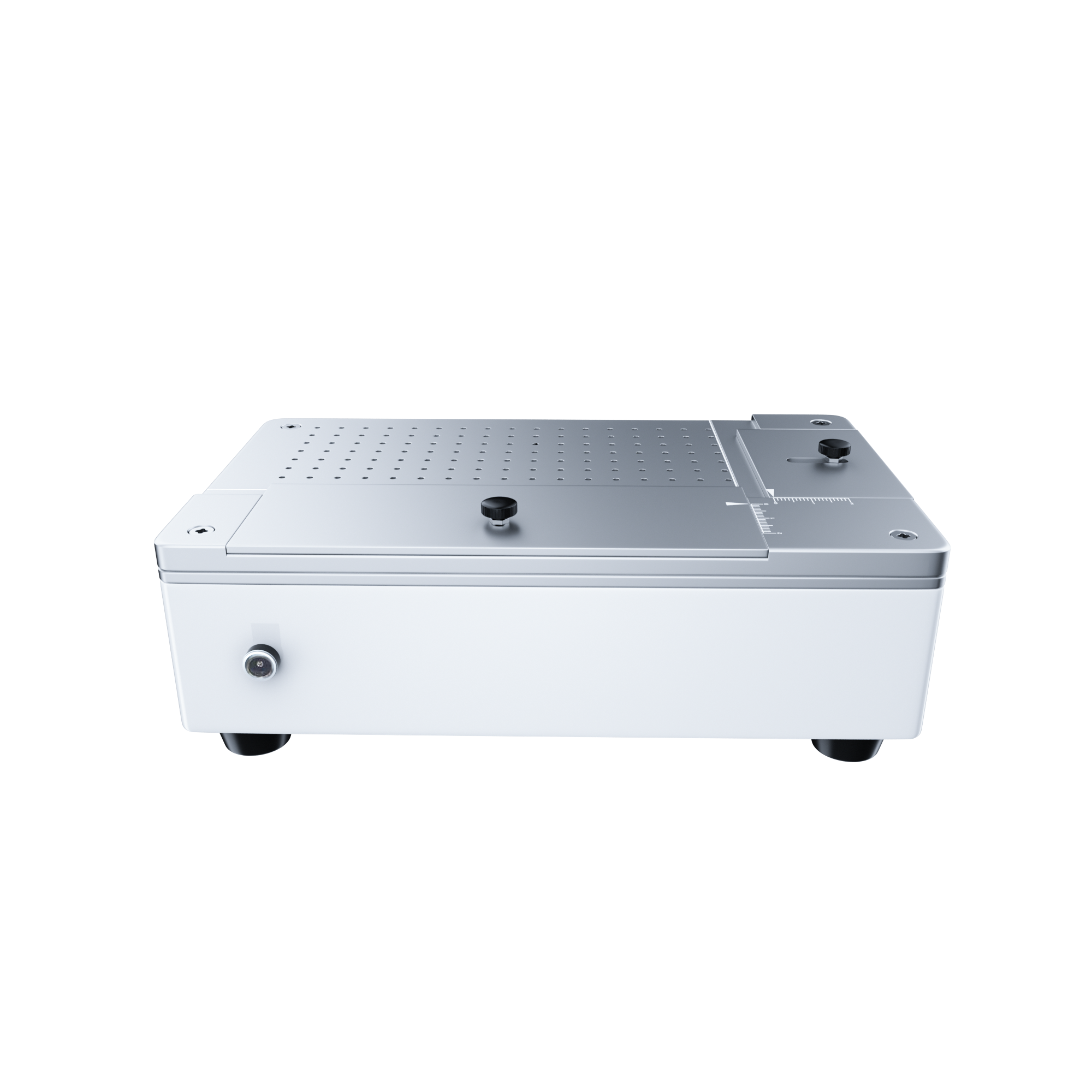

TBK-009 Positioning Aligner for OCA of Curved Screen

TBK-009 Positioning Aligner for OCA of Curved Screen

 for all 8-inch curved display of mobile phones

Main Features:
*    Internally with 2 vacuum pumps, suitable for all curved smartphones likes Samsung Huawei Oppo Vivo
*    Precise positioning, suitable for 8-inch mobile phones
*    Portable (only 1.6 ks)
*    Convenient, one button to work
*    SUPER SUCTION with 136 holes
*    40 Days for Power Standby
*    Interval time 0.01S
*    Suction strength: 60K Pa
*    Mark positioning-interval 1mm

Product details:
*    Model: TBK-009
*    AC adapter: 110-240V, 50/60Hz
*    Power: 30W
*    Colour: Silver (Standard version)
*    Net weight: 1.6 kgs
*    Gross weight: 2.0 kgs
*    Product size: 22*13*7 cm
*    Packing size: 32*21*18 cm

How to use:

Step 1:  Place OCA (larger film upward) on the worktable to check the suitable size, and seal the redundant suction holes with tape to prevent air leakage, OCA positioning: Just align the OCA film directly  with the worktable

Step 2: Align the OCA film directly with the worktable, seal the redundant suction holes with tape to prevent air leakage

Step 3: After the OCA film is well placed, turn on the power switch to absorb the OCA film firmly, then tear the film off

Step 4: After tearing off the OCA film, put the cover plate which should be aligned with the white line of the OCA film, and tap lightly on it, then put the positioned cover plate into the lamination machine for vacuum laminating completely.
